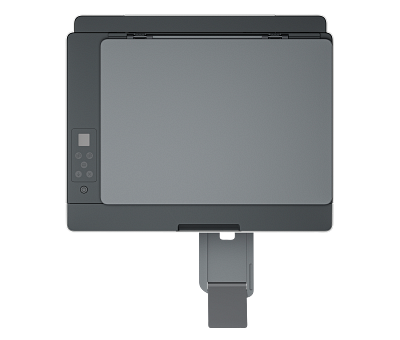

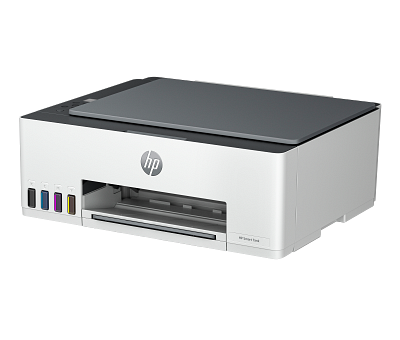

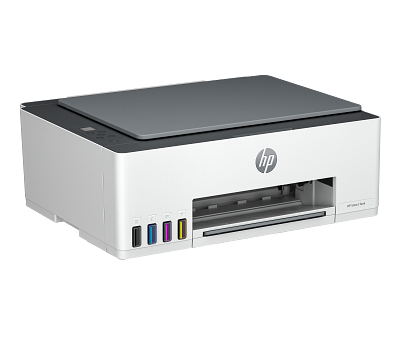

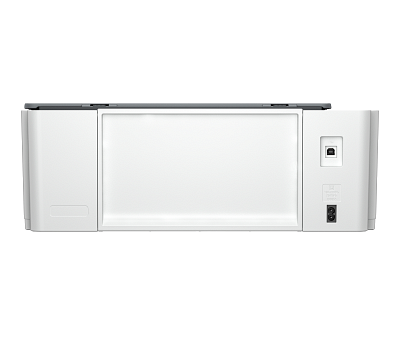

HP Smart Tank 520 All-in-One Printer

Compatible Operating Systems: Windows 11; Windows 10; Windows 7

Minimum System Requirements: Windows 11, Windows 10, 1 GHz processor, 2 GB SSD, Internet

What's in the box: HP Smart Tank 520 All-in-One Printer; 2 x HP GT53 90ml Black Original ink Bottle; HP GT52 50ml Cyan Original Ink bottles; HP GT52 50ml Magenta Original Ink bottles; HP GT52 50ml Yellow Original Ink bottles; HP Black Printhead; HP Tri-color Printhead; Power cord; Ink caution flyer; Setup guide; Reference guide; Regulatory flyers; Warranty flyers

Manufacturer Warranty: One-year or 30,000 pages limited hardware warranty, whichever is earlier from the date of purchase. For more info please visit us at http://support.hp.com

Energy savings feature technology: HP Auto-Off Technology

Product color: Light basalt

Power consumption: 0.11 watts (manual-off), 2.588 watts (ready), 0.984 watts (sleep)

Power: Input voltage 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz). High voltage: Input voltage 200 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3Hz)

Power supply type: Internal built in

Cable included: Yes, 1m USB.

Postcards (JIS single and double): https://h41237.www4.hp.com/PWS/api/promotion/?skus=1F3W2A&country=IN&language=EN

PictBridge supported: No

PictBridge description: No

Output file format: JPEG

Video action printing supported: No

Ink types: Pigment-based (black); Dye-based (color)

Page Yield in Draft Mode: (671)~24,000 pages Black, ~9,200 pages Color,(AC8)~16,000 pages Black, ~9,200 pages Color,(ACJ)~10,200 pages Black, ~9,200 pages Color,(AK3)~8,000 pages Black, ~9,200 pages Color,(AKH)~16,000 pages Black, ~9,200 pages Color,(AKY)~16,000 pages Black, ~9,200 pages Color,(BEW)~24,000 pages Black, ~9,200 pages Color,(BG2)~8,000 pages Black, ~9,200 pages Color,(BGG)~8,000 pages Black, ~9,200 pages Color,(BH2)~8,000 pages Black, ~9,200 pages Color,(BHG)~24,000 pages Black, ~9,200 pages Color

Page Yield in Draft Mode Footnote: Draft page yields are approximate and were measured using “Draft” print-quality settings in the Windows/Mac driver, based on HP Methodology from the simulation of continuous printing of ISO/IEC 24712 pages. Actual page yield varies significantly depending on content printed, ink levels maintained in all four reservoirs, and other factors. For more information about fill and yield, see https://hp.com/go/learnaboutsupplies .

Print Cartridge/Bottle, Color(s): Black; Cyan; Magenta; Yellow

Print Cartridges/Bottle, Number: 4 (1 each black bottle, set of 3 color bottles)

Print colors maximum: 4

Print head nozzles: 704 (Black), 588 (Tri-color)

Print heads: 2 (1 each black, tri-color)

Replacement cartridges: North America: HP GT53 90-ml Black Original Ink Bottle 1VV22AA; HP GT53XL 135-ml Black Original Ink Bottle 1VV21AA; HP GT52 Cyan Original Ink Bottle M0H54AA; HP GT52 Magenta Original Ink Bottle M0H55AA; HP GT52 Yellow Original Ink Bottle M0H56AA; Europe Middle East and Africa: HP GT53XL 135-ml Black Original Ink Bottle 1VV21AE; HP GT52 Cyan Original Ink Bottle M0H54AE; HP GT52 Magenta Original Ink Bottle M0H55AE; HP GT52 Yellow Original Ink Bottle M0H56AE; Asia Pacific: HP GT53 90-ml Black Original Ink Bottle 1VV22AA; HP GT53XL 135-ml Black Original Ink Bottle 1VV21AA; HP GT52 Cyan Original Ink Bottle M0H54AA; HP GT52 Magenta Original Ink Bottle M0H55AA; HP GT52 Yellow Original Ink Bottle M0H56AA; Latin America: HP GT53 90-ml Black Original Ink Bottle 1VV22AL; HP GT52 Cyan Original Ink Bottle M0H54AL; HP GT52 Magenta Original Ink Bottle M0H55AL; HP GT52 Yellow Original Ink Bottle M0H56AL; HP GT52 3-pack Cyan/Magenta/Yellow Original Ink Bottles X4E44AL. For more information about fill and yield, see http://www.hp.com/go/learnaboutsupplies .

Replacement cartridges footnote: Black and composite color average per bottle (cyan/magenta/yellow) results based on HP methodology from the simulation of continuous printing of ISO/IEC 24712 test pages. Not based on ISO/IEC 24711 test process. An additional black ink bottle is required to print 8,000 color test pages. Actual yield varies based on content of printed pages and other factors. Some ink from included bottles is used to start up the printer. For more information about fill and yield, see http://www.hp.com/go/learnaboutsupplies .

Segment (filter): Home

Print Technology: Ink

Brand: HP

Product type: Inkjet printers

Sub brand: Smart Tank

Subcategory: Single and multifunction printers

Electromagnetic compatibility: EN 55032:2015+A11:2020 Class B; EN 55024:2010 +A1:2015; EN 55035:2017+A11:2020; EN IEC 61000-3-2:2019; EN 61000-3-2:2014; EN 61000-3-3:2013 +A1:2019

Ecolabels: Conforms to ecolabel energy efficiency limits

Energy star certified: No

Safety: IEC 60950-1 & IEC62368-1 compliant; EU LVD and EN 60950-1 & EN 62368-1 compliant; Singapore Safety; China CCC; Taiwan BSMI

Sustainability specifications: 45% post-consumer recycled plastic

Accessories: None

Orderable supplies: North America: HP GT53 90-ml Black Original Ink Bottle 1VV22AA; HP GT53XL 135-ml Black Original Ink Bottle 1VV21AA; HP GT52 Cyan Original Ink Bottle M0H54AA; HP GT52 Magenta Original Ink Bottle M0H55AA; HP GT52 Yellow Original Ink Bottle M0H56AA; Europe Middle East and Africa: HP GT53XL 135-ml Black Original Ink Bottle 1VV21AE; HP GT52 Cyan Original Ink Bottle M0H54AE; HP GT52 Magenta Original Ink Bottle M0H55AE; HP GT52 Yellow Original Ink Bottle M0H56AE; Asia Pacific: HP GT53 90-ml Black Original Ink Bottle 1VV22AA; HP GT53XL 135-ml Black Original Ink Bottle 1VV21AA; HP GT52 Cyan Original Ink Bottle M0H54AA; HP GT52 Magenta Original Ink Bottle M0H55AA; HP GT52 Yellow Original Ink Bottle M0H56AA; Latin America: HP GT53 90-ml Black Original Ink Bottle 1VV22AL; HP GT52 Cyan Original Ink Bottle M0H54AL; HP GT52 Magenta Original Ink Bottle M0H55AL; HP GT52 Yellow Original Ink Bottle M0H56AL; HP GT52 3-pack Cyan/Magenta/Yellow Original Ink Bottles X4E44AL. For more information about fill and yield, see http://www.hp.com/go/learnaboutsupplies .

Connectivity: USB

Number of users: 1-3 Users

Connectivity, standard: 1 Hi-Speed USB 2.0 (device)

Wireless capability: No

Color copy capability: Yes

Copier settings: Number of Copies; Black; Color; ID Copy

Copies, maximum: Up to 99 copies

Copy resolution (black graphics): Up to 600 dpi

Copy resolution (black text): Up to 600 dpi

Copy resolution (color text and graphics): Up to 600 x 600 dpi

Copy speed black (ISO): Up to 10 cpm

Copy speed color (ISO): Up to 2 cpm

File Format Supported: JPG; PDF

Digital sending standard features: Scan to file (from software); HP Smart Tasks

Send to email capability: No

Maximum dimensions (W x D x H): 17.11 x 22.86 x 10.21 in

Maximum dimensions (W x D x H): 434.66 x 580.65 x259.37 mm

Package dimensions (W x D x H): 19.49 x 7.8 x 18.82 in

Package dimensions (W x D x H): 495 x 198 x 478 mm

Pallet dimensions: 47.99 x 40 x 94.09 in

Pallet dimensions (W x D x H): 1200 x 1000 x 2390 mm

Dimensions (W x D x H): 17.11 x 14.23 x 6.19 in

Dimensions (W x D x H): 434.66 x 361.53 x 157.26 mm

Dimensions with trays up (W x D x H): 434.66 x 316.53 x 157.26 mm

Package weight: 15.89 lb to 16.73 lb depending on number of bottle/s included

Package weight: 7.19 kg to 7.59 kg depending on number of bottle/s included

Pallet weight: 950 lb to 1002 lb depending on number of bottle/s included

Pallet weight: 432 kg to 455 kg depending on number of bottle/s included

Weight: 10.8 lb

Weight: 5.03 kg

Display: 27 Segments + 1.0 inch iCON LCD display

Acoustic power emissions (active, printing): 6.4 B(A)

Acoustic pressure emissions: 50.5 dBA (Mono) ; 43.7 dBA (Colour)

Energy Usage CO2e (kg): 14

End of Life CO2e (kg): 2

Storage altitude: 4572 m

Non-Operating Humidity Range: 5 to 90% RH (non-condensing)

Operating humidity range: 15 to 80% RH (non-condensing)

Recommended operating humidity range: 20 to 80% RH

Operating temperature range: 5 to 40°C

Operating temperature range: 41 to 104°F

Recommended operating temperature range: 15 to 30°C

Recommended operating temperature range: 59 to 86°F

Production CO2e (kg): 30

Storage temperature range: -40 to 60°C

Storage temperature range: -40 to 140°F

Total CO2e (kg): 48

Transportation CO2e (kg): 2

Features: High-volume printer tank; Scan to PDF

Functions: Print scan and copy

Feature headline: Seamless setup

Feature headline: Smart buttons

Feature headline: Low-on-ink sensors

Feature headline: USB 2.0 High-Speed port

Feature headline: HP Auto On/Auto-Off technology

Feature image URL: https://h10003.www1.hp.com/digmedialib/prodimg/lowres/c08226581.png

Feature image URL: https://h10003.www1.hp.com/digmedialib/prodimg/lowres/c04796983.png

Feature image URL: https://h10003.www1.hp.com/digmedialib/prodimg/lowres/c03795697.png

Feature image URL: https://h10003.www1.hp.com/digmedialib/prodimg/lowres/c08201969.png

Feature image URL: https://h10003.www1.hp.com/digmedialib/prodimg/lowres/c03795747.png

Feature supporting point: Get started fast with simple setup that guides you through each step.

Feature supporting point: Easily manage tasks with smart buttons that illuminate and guide you through the printing process.

Feature supporting point: Easily monitor and maintain ink levels with integrated ink sensors

Feature supporting point: Easily connect your printer to your computer with the built-in USB port.

Feature supporting point: Turn your printer on when you need it and off when you don't.

Features list title: Copier, Scanner

Feature headline: Engineered for high-volume printing

Feature headline: Spill-free ink refill experience

Feature headline: Exceptional HP quality

Feature headline: HP Wolf Essential security

Feature headline: Enhanced ID Copy

Feature headline: All-in-one versatility

Feature image URL: https://h22189.www2.hp.com/shared/folder/q5GhsaM=/asset/073A7051-6122-4C52-AB21-2B6885D1E53A

Feature supporting point: Get up to 12000 black pages or up to 6000 color pages.

Feature supporting point: HP’s innovative ink bottle design delivers the cleanest and easiest refill experience for HP Ink Tanks.

Feature supporting point: Count on dark, crisp text, and get vibrant color graphics for all your prints.

Feature supporting point: Safeguard your documents and memories right out of the box with critical protection against cyber-threats.

Feature supporting point: Easily detects and copy IDs, and print on one page.

Feature supporting point: Get the features you need for work and other tasks with copy, and scan functions.

Flex value prop 1 headline: Intuitively smart. Light on price.

Flex value prop 1 supporting point: Enjoy all the HP quality you expect -- with savings that are anything but expected

Form factor: All-in-One

Country of origin: Made in Thailand

Geographic availability: EM

Additional information about HP in the countries: http://www.hp.com/uk

Additional information about HP: http://www.hp.com

Differentiator (features): The smart tank printer

Differentiator: Discover intuitively smart capabilities and savings with the HP Smart Tank 520 All-in-One printer with up to 6,000 black pages or 6,000 color pages of high-quality ink included.

Differentiator: Enjoy all the HP quality you expect -- with savings that are anything but expected

Why to buy: Discover intuitively smart capabilities and savings with the HP Smart Tank 520 All-in-One printer with up to 6,000 pages of high-quality ink bottles included at an ultra-low cost per page.

Headline: HP delivers smart tank value

Headline: Smart tank value

Key selling point: Up to 8,000 black pages or 6,000 color pages of ink keeps you printing at a fraction of the cost

Key selling point: Save on energy with HP Auto-On/Auto-Off technology

Key selling point: Ink sensors help prevent costly printhead replacements

Headline: Stay connected with a printer that is ready when you are

Headline: Ready when you are

Key selling point: Stay connected with high-speed USB

Key selling point: Personalize settings with HP Smart

Headline: Get a conveniently intuitive tank printer designed for every day

Headline: Conveniently intuitive

Key selling point: Easy setup

Key selling point: Print more at a fraction of the price with up to 8,000 pages of black or 6,000 pages of color ink in the box

Key selling point: Color-coded, mess-free recyclable bottles for easy refill

Image legal disclaimer: Product image may differ from actual product

Copyright notice: © Copyright 2026 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Legal disclaimer: ENERGY STAR and the ENERGY STAR logo are registered U.S. marks. Microsoft and Windows are registered trademarks of Microsoft Corporation. AirPrint and the AirPrint logo are trademarks of Apple Inc., registered in the U.S. and other countries. Linux is a U.S. registered trademark of Linus Torvalds. UNIX is a registered trademark of The Open Group.

Product logos: Hi-speed USB certified; Get it from Microsoft; PAP 20; Fragile; Keep out of Rain; This side up

Paper size: Letter; A4; Legal; 4 x 6 in

Monthly printed pages: 800

Maximum Memory: 64MB

Memory Slots: No

Memory: 64 MB Integrated DDR1

Segment: Home

Usage: Home

Cartons per layer: 12

Count of layers in pallet: 5

Quantity per pallet: 60

Color or black: Color

Print speed, black: 12

Print speed, color: 5

Maximum print area: 216 x 355 mm

Bottom margin (A4): 3 mm

Left margin (A4): 3 mm

Right margin (A4): 3 mm

Top margin (A4): 3 mm

Print quality black (best): Up to 1200 x 1200 rendered dpi

Print quality color (best): Up to 4800 x 1200 optimized dpi color when printing from a computer and 1200 input dpi

Print speed black (ISO): Up to 12 ppm

Print speed color (ISO): Up to 5 ppm

Print speed: Print speed up to 12 ppm (black) and 5 ppm (color)

Print speed black (draft, A4): Up to 22 ppm

Print speed black (ISO, A4): Up to 12 ppm

Print Speed Black (Draft, A4 Memo): Up to 30 ppm

Print Speed Color (Draft, A4 Memo): Up to 24 ppm

Print speed color (draft, A4): Up to 16 ppm

Print speed color (normal, 4x6 photo): As fast as 76 sec

First page out black (A4, ready): As fast as 14 sec

First page out color (A4, ready): As fast as 21 sec

First page out footnote: For details see http://www.hp.com/go/printerclaims

Functions: Print, copy, scan

Automatic paper sensor: No

Borderless printing: Yes (up to 8.5 x 11 in, 210 x 297 mm)

Duplex printing: Manual (driver support provided)

Duty cycle (monthly, A4): Up to 3,000 pages

Duty cycle (monthly, letter): Up to 3,000 pages

Duty cycle note: Duty cycle is the maximum number of pages that can be printed in a month, but this page volume is not recommended on an ongoing basis.

Envelope Feeder: No

Fonts and typefaces: None

Paper trays, maximum: 1

Paper trays, standard: 1

Photo proofsheets supported: No

Print colors: Yes

Printer drivers included: HP PCL 3 GUI

Print languages: HP PCL 3 GUI; HP PCLm (HP Apps/UPD)

Vertical alignment accuracy: +/- 0.02 mm

Vertical alignment accuracy: +/- 0.0008 in

Print technology: HP Thermal Inkjet

Recommended monthly page volume: 400 to 800

Recommended monthly page volume note: HP recommends the number of pages printed not exceed the recommended monthly page volume for optimum device performance.

Target user and print volume: For teams up to 3 users; Prints up to 800 pages/month

Top key features: High-volume printer tank; Scan to PDF

Maximum input capacity (4x6 photo): Up to 30 sheets

Maximum input capacity (photo paper): Up to 30 sheets

Maximum input capacity (sheets): Up to 100 sheets

Maximum input capacity (cards): Up to 30 cards

Maximum Input Capacity (envelopes): Up to 10 envelopes

Maximum input capacity (10x15cm photos): Up to 30 sheets

Input capacity: Up to 100 sheets

Standard input capacity (cards): Up to 30 cards

Standard input capacity (envelopes): Up to 10

Standard input capacity (legal): Up to 100 sheets

Finished output handling: Sheetfed

Maximum output capacity (photo paper): Up to 30 sheets

Maximum output capacity (cards): Up to 30 cards

Maximum output capacity (envelopes): Up to 10 envelopes

Maximum output capacity (sheets): Up to 30 sheets

Output capacity: Up to 30 sheets

Standard output capacity (cards): Up to 30 cards

Standard output capacity (envelopes): Up to 10 envelopes

Standard output capacity (legal): Up to 30 sheets

Paper handling input, standard: 100-sheet input tray

Paper handling output, standard: 30-sheet output tray

Processor speed: 980 MHz

Overview: Enjoy everyday reliability with the HP Smart Tank 520 All-in-One printer that delivers HP quality you expect and savings that are anything but expected

Overview: Enjoy everyday reliability with the HP quality you expect and savings that are anything but expected

Photo (product photo, jpg, 70x100): Printers and Multifunction/CD028B_70x100.jpg

Model number: 520

Product long name: HP Smart Tank 520 All-in-One Printer

Short product name: 520

Product name (back): Smart Tank 520 All-in-One

Product name (front): Smart Tank 520 All-in-One

Product name (primary): Smart Tank 520 All-in-One

Product name (secondary): Smart Tank 520 All-in-One

Sub-brand name: Smart Tank

RMN number: SNPRC-2201-03

Tariff numbers: NA/EMEA: 8443310000; AP China: 8443319010

Enhanced scanning resolution: Up to 1200 dpi

Scan resolution, hardware: Up to 1200 x 1200 dpi

Scan resolution enhanced disclaimer: Up to 1200 dpi

Scan resolution, optical: Up to 1200 dpi

Scan speed (normal, A4): Up to 200 ppi/19 secs (color), up to 200 ppi/10 secs (mono)

Bit depth: 24-bit

Color scanning: Yes

Image scaling or enlargement range: 25 to 150%

Levels of grayscale: 256

Scan file format: JPG; PDF; PNG; TIFF; HEIF

Scan input modes: Copy; HP Software

Scan size, maximum: 216 x 297 mm

Scan size, maximum: 8.5 x 11.69 in

Scan technology: Contact Image Sensor (CIS)

Scanner type: Flatbed

Twain version: Version 2.4

Security management: No

Mac compatible: No

Software included: HP Printer Software

Standard media sizes (duplex, imperial): Letter; Executive

Media sizes supported, key: 10 x 15 cm; A4; Envelopes

Media sizes supported, key: 4 x 6 in; Letter; Legal; Envelopes

Media sizes, custom: 88.9 x 127 mm to 215.9 x 355.6 mm

Media sizes, custom: 3.5 x 5 in to 8.5 x 14 in

Standard media sizes (duplex): A4; B5

Media sizes supported: A4; B5; A6; DL envelope, legal

Media sizes supported: Letter; legal; 4 x 6 in; 5 x 7 in; 8 x 10 in; No. 10 envelopes

Media types: Plain Paper, HP Photo Papers, HP Matte Brochure or Professional Paper, HP Matte Presentation Paper, HP Glossy Brochure or Professional Paper, Photo Inkjet Papers, Matte Inkjet Papers, Glossy Inkjet Papers, Inkjet Hagaki, Plain Paper, Thick, HP Tri-fold Brochure Paper, Glossy, Plain Paper, Light/Recycled

Media weight, supported: Plain paper: 60 to 90 g/m²; Envelopes: 75 to 90 g/m²; Cards: up to 200 g/m²; Photo paper: up to 300 g/m²

Media weight, recommended: 75 g/m²

Media weight, recommended: 20 lb

Media weight, supported: Plain paper: 16 to 24 lb; Envelopes: 20 to 24 lb; Cards: up to 110 lb; Photo paper: up to 80 lb

Control panel: Power On/Off, Cancel, Resume, Color Copy, Black copy and ID copy button

System requirements, recommended: Microsoft® Windows® 11, 10, USB, Internet connection, Microsoft® Internet Explorer or Edge.

Ideal for: Best for families or work from home professionals who print a lot everyday: Print color documents like business records and school projects.

Feature: Simple set-up

Feature: Border-less printing

Feature: Made from recycled plastic

Feature: Flatbed scanner

Feature: Spill-free refill bottles

Playbook e-tail Gallery header 01: Everyday reliable Smart Tank

Playbook e-tail Gallery header 02: Up to 6,000 black or color pages of ink included

Playbook e-tail Gallery header 03: Save on energy with HP Auto-On/Off technology

Playbook e-tail Gallery header 04: Thinks ahead with low-on-ink sensors

Playbook e-tail Gallery header 05: Stay connected with high-speed USB 2.0

Playbook e-tail Gallery header 06: Personalize settings with HP Smart

Playbook e-tail Gallery header 07: Seamless setup

Playbook e-tail Gallery header 08: Easy guidance with smart buttons

Playbook e-tail Gallery header 09: Color-coded, mess-free ink refill

Playbook BTF e-tail Header 01: Engineered for high-volume printing.

Playbook BTF e-tail Header 02: HP Auto On/Auto-Off technology.

Playbook BTF e-tail Header 03: USB 2.0 High-Speed port.

Playbook BTF e-tail Header 04: Smart buttons.

Playbook BTF e-tail Header 06: HP Smart Advance

Playbook BTF e-tail Supporting (medium) 01: Get up to 6000 color or black pages of ink bottles included.

Playbook BTF e-tail Supporting (medium) 02: Turn your printer on when you need it and off when you don't.

Playbook BTF e-tail Supporting (medium) 03: Easily connect your printer to your computer with the built-in USB port.

Playbook BTF e-tail Supporting (medium) 04: Easily manage tasks with smart buttons that illuminate and guide you through the printing process.

Playbook BTF e-tail Supporting (medium) 05: Easily monitor and maintain ink levels with integrated ink sensors
